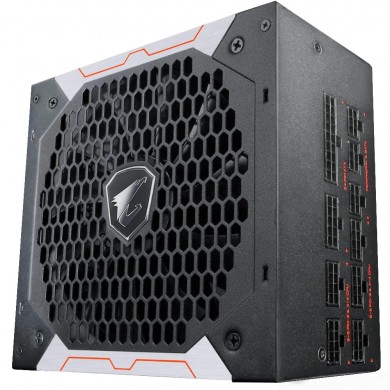

Bloc de alimentare 750W GIGABYTE AORUS ”GP-AP750GM”

Cod produs: GP-AP750GM

Specificaţii

Part Number.....................................................................................................................................................................................................GP-AP750GM

Model.....................................................................................................................................................................................................PK750D

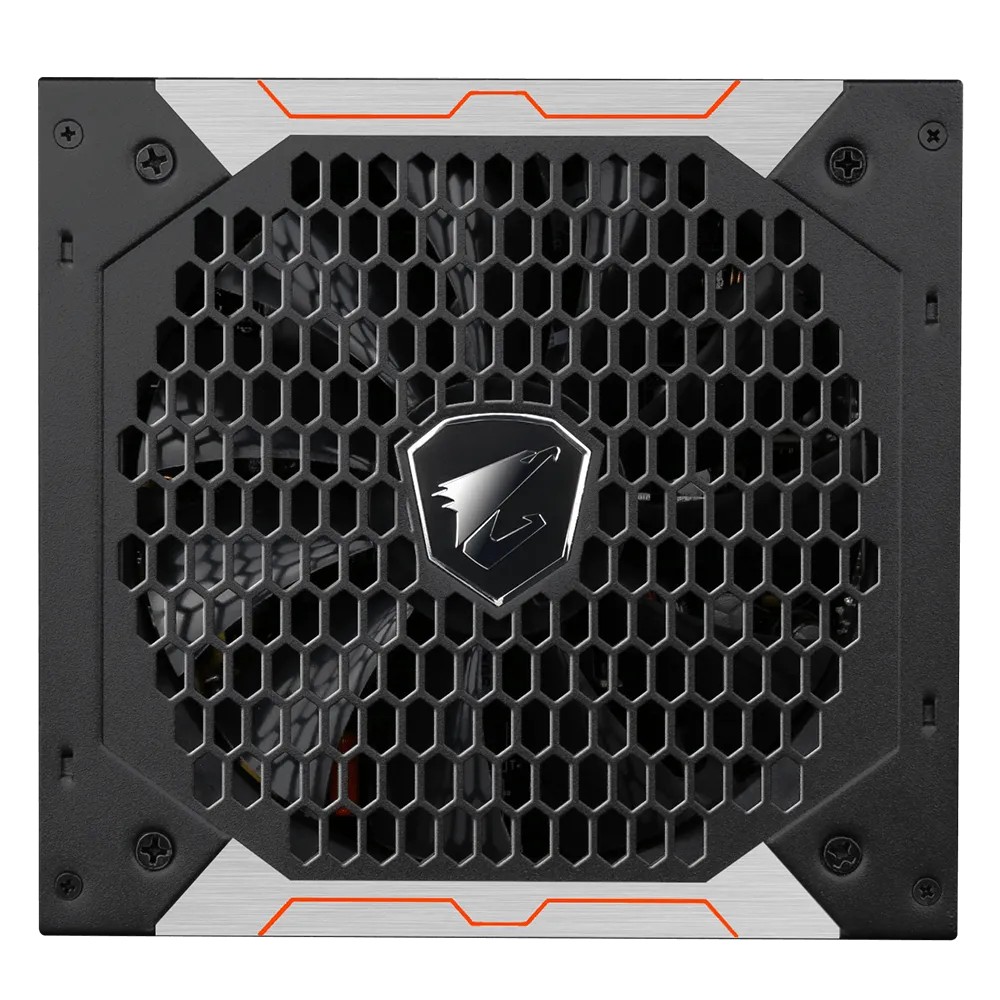

Dimensiunile ventilatorului.....................................................................................................................................................................................................135 mm

Puterea maxima.....................................................................................................................................................................................................750 W

Tip.....................................................................................................................................................................................................ATX12V V2.31

Tensiunea de intrare.....................................................................................................................................................................................................100 ~ 240 V

Certificat.....................................................................................................................................................................................................80 PLUS Gold

Caracteristici ventilator.....................................................................................................................................................................................................Ventilator HYB cu opritor ventilator

PFC.....................................................................................................................................................................................................Active PFC

Eficacitate.....................................................................................................................................................................................................90 %

Protectie.....................................................................................................................................................................................................OVP / UVP / OCP / OTP / OPP / SCP

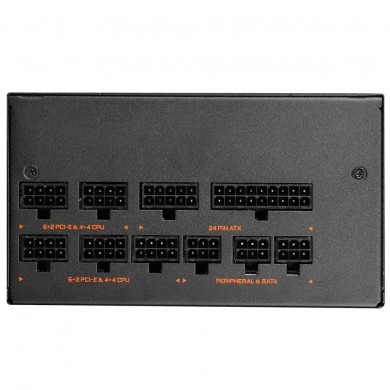

Porturi - MB (24Pin).....................................................................................................................................................................................................1

Porturi - EPS ATX12V (4+4Pin).....................................................................................................................................................................................................2

Porturi - PCI-E (6+2Pin).....................................................................................................................................................................................................4

Porturi - Peripheral (Big 4Pin).....................................................................................................................................................................................................3

Porturi - SATA.....................................................................................................................................................................................................6

Curent de linie +3.3V.....................................................................................................................................................................................................15 A

Curent de linie +5V.....................................................................................................................................................................................................15 A

Curent de linie +12V.....................................................................................................................................................................................................62 A

Short description

PSU GIGABYTE AORUS ”GP-AP750GM”, 750W, ATX12V V2.31, 80 PLUS® Gold, Full Modular, Flat Black Cables, Active PFC + Full Bridge SRC LLC + DC to DC, 135mm HYB Fan with Fan Stop, +12V (62A), 20+4 Pin, 2xCPU(4+4Pin), 6x SATA, 4xPCI-E(6+2pin), 5x Peripheral, OCP/OTP/OVP/OPP/UVP/SCP, Black
